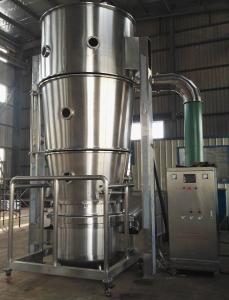

FLP Series indoor bottom spraying fluidized bed coater for granules coating
Indoor Bottom Spray Fluidized Bed Coating Equipment FLP Series For Granules Coating
Description
The purified and heated air passes through the gaps of ring and enters into the container. The raw material in the container appears the state of boiling. Because of the rotating of distribution plate, the raw material undertakes the effect of gravitation itself, buoyancy of air, circular centrifugal force and friction acts circular round movements.
Application
1. The granulating machine combines several advanced technologies for a number of different grain coating and coloring applications.
2. Finished products can have porous properties or form into compact balls.
3. The granulating process is performed in an enclosed chamber with negative pressure, making it suitable for medicine or other applications with strict environment requirements.
4. GMP standard production.
Features
1. Granulating and coating for powder material
2. Granulating and coating for flow immersed paste of Chinese traditional medicine
3. FLP Series indoor bottom spraying fluid bed coater for granules coating prepare and coat granule of 50um
4. FLP Series indoor bottom spraying fluidized bed coater for granules coating prepare porous quick solving granule, multi-layerlow releasing and control releasing coating, ball granule and coating
5. Can prepare compact ball(pellet)granule and coating.
6. Dry powder, granule and mass shape material.
7. One machine with multi-function.
Technical Parameters
| Item | Unit | Type | | 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | | Container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | | Diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | | Capability | Min | kg | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 | | Max | kg | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | | Fan | Capacity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 | | Pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | | Power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | | Steam expenditure | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | | Compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | | Weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1300 | 1500 | 1800 | 2000 | | Steam pressure | Mpa | 0.30.6 | | Temperature | | Adjustable at the range from room temperature to 120 | | Working time | min | Decided in accordance with the properties of raw materials | | Field | % | ≥99 | | Noise | dB(A) | ≤75dB(A)When installation, main machine is separated from fan | | Size (L×W×H) | m | 1.0×0.6×2.1 | 1.2×0.7×2.3 | 1.25×0.9×2.5 | 1.6×1.1×2.5 | 1.85×1.4×3 | 2.2×1.65×3.3 | 2.34×1.7×3.8 | 2.8×2.0×4.0 | 3×2.25×4.4 | | |
